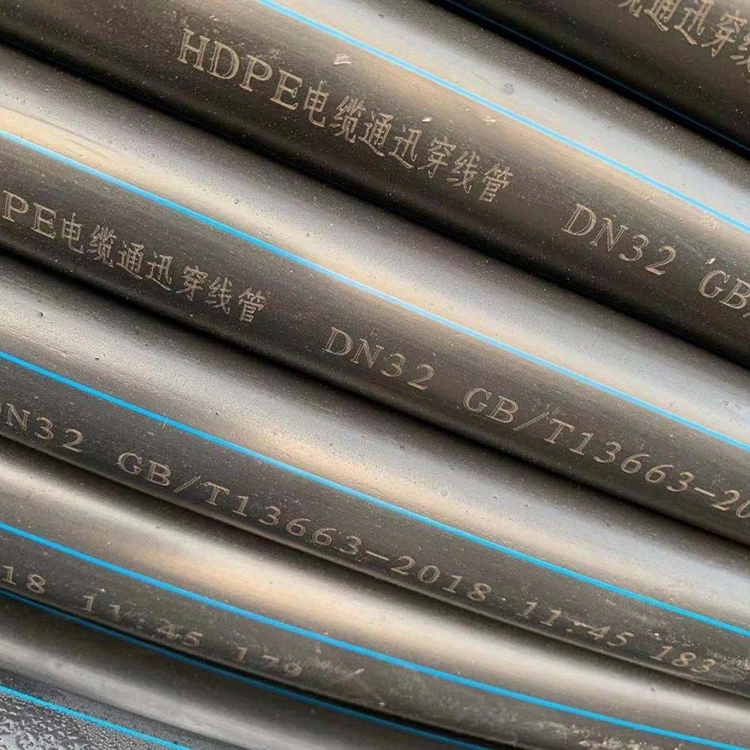

Our smooth-wall HDPE pipes protect power and telecom cables for decades. We make them by extruding high-grade polyethylene with built-in UV protection to prevent aging. Designed specifically for protecting power and communication cables,HDPE Cable Protection pipe demonstrates exceptional mechanical strength and corrosion resistance, making it ideal for cable laying in municipal engineering, communication networks, and power systems.
Fonctionnalité:
Construction flexible et durable
Resists acids, alkalis, and salt corrosion
Smooth interior for easy cable installation
High tensile strength, resists crushing and twisting
Adapts to complex bends and terrain
Léger pour une manipulation facile
Supports quick fusion or socket connections
Withstands temperature variations and physical impacts
Fournit un blindage EMI
Environmentally friendly and recyclable
Applications :
Protection du câble d'alimentation
Conduits de communication à fibre optique
Thick-walled design enhances durability and extends service life.
|
Tuyau PE pour l'alimentation et la communication |
||
|
DO nominale (mm) |
Épaisseur de paroi minimale (mm) |
Longueur (m) |
|
25 |
2 |

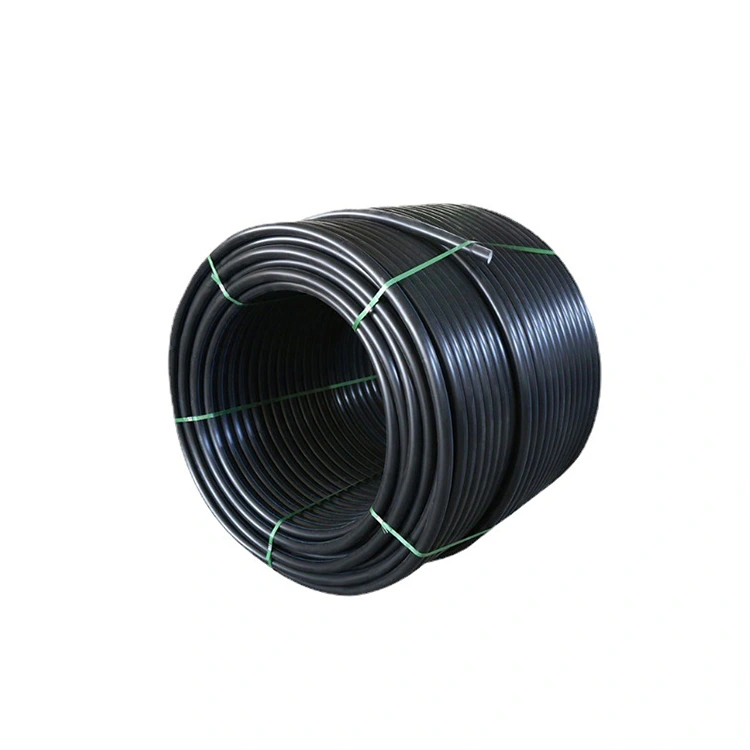

400 m/rouleau |
|
32 |
2 |
300 m/rouleau |
|
40 |
2.5 |
200 m/rouleau |
|
50 |
3 |
200 m/rouleau et 6-12 m/barre |
|
60 |
3.5 |
100m or 200m/roll and 6m or 12m/bar |
|
63 |
3.5 |
100m or 200m/roll and 6m or 12m/bar |
|
75 |
3 |
100 m/rouleau et 6 m ou 12 m/barre |
|
90 |
3.5 |
100 m/rouleau et 6 m ou 12 m/barre |
|
100 |
4 |
6m ou 12m/barre |
|
110 |
4 |
6m ou 12m/barre |
|
125 |
5 |
6m ou 12m/barre |
|
150 |
5 |
6m ou 12m/barre |
|
160 |
5 |
6m ou 12m/barre |
|
167 |
8 |
6m ou 12m/barre |
|
175 |
7 |
6m ou 12m/barre |
|
180 |
7 |
6m ou 12m/barre |
|
192 |
7 |
6m ou 12m/barre |
|
200 |
6 |
6m ou 12m/barre |
|
219 |
10 |
6m ou 12m/barre |
|
225 |
10 |
6m ou 12m/barre |
|
232 |
16 |
6m ou 12m/barre |
|
250 |
9 |
6m ou 12m/barre |
Hot-selling Sizes:160 hdpe pipe ,225 hdpe pipe
